HPE ProLiant DL365 Gen11 Bezel and Chassis Hardware Options

The HPE ProLiant DL365 Gen11 is a 1U two-socket rack server available in 8SFF, EDSFF, and GPU configure-to-order (CTO) base configurations. This reference covers base chassis options, external bezels, the intrusion cable, and the optional System Insight Display module. Drive backplanes, risers, and optical-drive hardware are discussed where they affect chassis configuration but remain in their respective hardware categories.

Chassis Layout and Front Access

The standard 8SFF front view identifies eight drive bays, a front USB port, an iLO service port, power and health indicators, and an optional media bay. The media position can accommodate an optional two-drive cage or supported optical-drive arrangement, subject to the configuration. A 10SFF front configuration is possible with the appropriate components, but maximum drive count also depends on the selected processor and cooling configuration.

Available Configure-to-Order Chassis

The factory CTO selections below are base servers rather than standalone replacement chassis assemblies. Processor kits and fans are chosen separately. The GPU CTO listing contains an internal inconsistency about its included drive arrangement, so its final front backplane choice should be verified against the GPU-specific configuration rules.

8SFF Chassis Bay and Backplane Considerations

For 8SFF CTO configurations, the base enclosure includes the eight-bay drive cage but does not include the backplane. HPE lists optional 8SFF and 2SFF SAS/SATA/NVMe configurations, an optional universal media bay, and no available rear drive cages in the factory CTO configuration table. Field upgrades may differ from the listed factory CTO arrangements. Compatible drive and backplane combinations must be checked in the Drive Cages & Storage Expansion section rather than inferred from the chassis SKU.

EDSFF and GPU Chassis Differences

The EDSFF CTO base is listed with 20 EDSFF bays and requires two processors, performance heatsinks or direct liquid cooling, and performance fans. For the GPU CTO, the general CTO table says the included cage is 20 EDSFF, but the GPU-specific backplane section requires selection of either a 4SFF U.3 NVMe or an 8EDSFF NVMe factory backplane. These descriptions should not be combined into an unconditional GPU storage-capacity claim.

Physical Bezel and Chassis Security Options

HPE lists a common front bezel, bezel lock kit, and chassis intrusion cable as additional security hardware. The intrusion cable is also identified as a required selection for Trusted Supply Chain configurations. A bezel lock is a physical access-control accessory; it should not be confused with the embedded TPM or a software license.

Trusted Supply Chain Dependency

The QuickSpecs explicitly requires the intrusion cable kit P48922-B21 when the Trusted Supply Chain configuration is selected. It separately lists the Trusted Supply Chain configuration and an electronic license; those are not physical bezel or chassis parts and are therefore excluded from this page's primary hardware part-number export. The document does not establish that every server configuration requires the intrusion cable.

System Insight Display and Front-Panel Hardware

The optional System Insight Display module provides a chassis-related front-panel service option. HPE specifies a maximum of one module per system. The standard chassis front panel already includes power, status, UID, NIC, USB, and iLO service-port features as shown in the front diagram.

Internal and Rear Chassis Layout

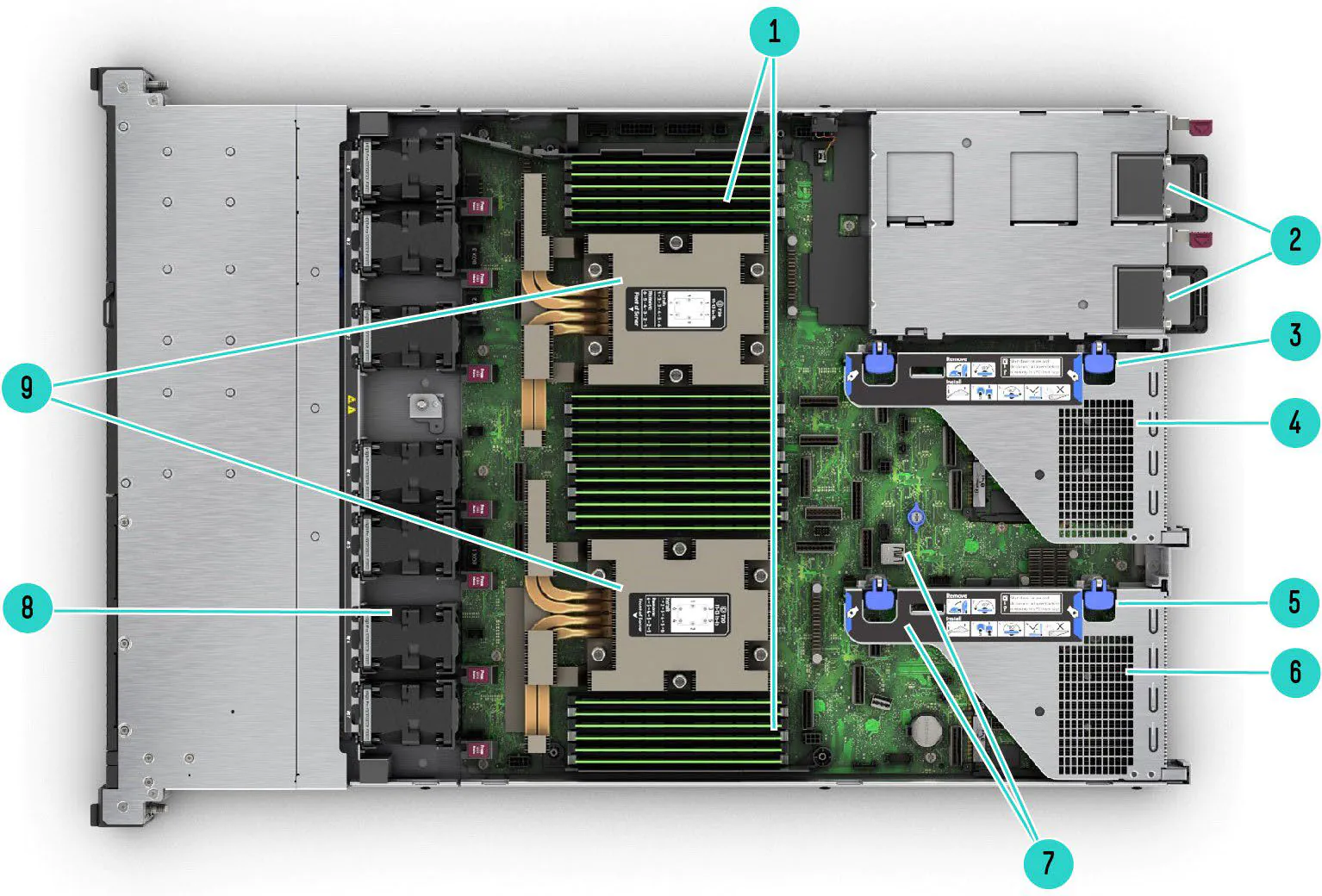

The internal layout identifies the two processor positions, 24 DIMM slots across both CPUs, primary and optional secondary riser positions, fan cage, two OCP 3.0 positions, and redundant hot-plug power supply locations. These component positions are relevant when identifying replacement hardware and confirming upgrade clearances.

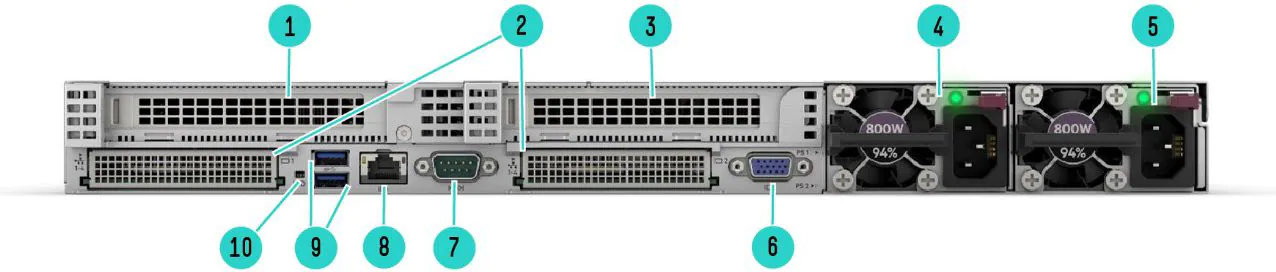

The rear view identifies PCIe 5.0 expansion slots, OCP 3.0 positions, the dedicated iLO management port, optional serial connectivity, rear VGA, USB, and the hot-plug power supply positions. Availability of the second riser and individual slots depends on the build.

Related Chassis Hardware in Other Categories

The following parts affect the front enclosure or chassis configuration but primarily belong on other category pages. They are shown here to clarify dependencies, not as additional bezel and chassis product SKUs.

Configuration and Installation Checks

Base CTO inventory: the factory CTO configurations do not include processor kits or fans as standard selections. The 8SFF CTO configuration also does not include its drive backplane.

Thermal constraints: EDSFF and GPU CTO configurations require performance cooling. High-TDP processors can restrict the maximum installed drive count; verify processor, cooling, and drive selections together.

Factory versus field: the chassis drive-bay table describes factory CTO selections and cautions that field upgrades may differ.

Physical protection: the optional intrusion cable and bezel lock perform different functions and should not be treated as interchangeable.

Documentation Discrepancy to Verify

The GPU CTO base configuration is described with an included 20 EDSFF drive cage, while its separate GPU-specific storage selection calls for either a 4SFF U.3 NVMe or 8EDSFF NVMe FIO backplane. The QuickSpecs does not reconcile these statements. Confirm the exact supported front storage arrangement using the appropriate HPE configuration tool before purchasing a GPU CTO base or front storage conversion hardware.
